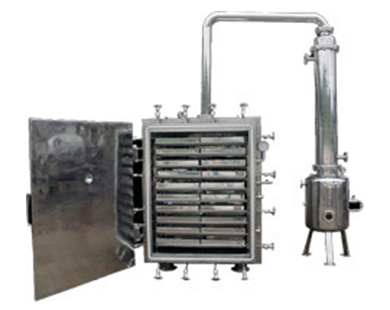

Solvent recovery vacuum oven

Online customer service：點擊這里給我發消息

Phone：025-85718786 13605185897
Fax：025-85769880

Technical Features
Technical Parameters
Related Products

- Characteristic:
  It is suitable for low temperature drying of thermosensitive materials which are easy to decompose, polymerize and deteriorate at high temperature. It is widely used in pharmaceutical, chemical, food, electronic and other industries.The so-called vacuum drying means that the drying materials are heated and dried under vacuum conditions. If the vacuum pump is used to extract air and humidity, the drying rate will be accelerated.
  _The boiling point of the material solution in vacuum decreases, which increases the heat transfer impetus of the evaporator. Therefore, the heat transfer area of the evaporator can be saved by a certain heat transfer amount.
  Low pressure steam or waste heat steam can be used as heat source for evaporation operation.
  The evaporator has less heat loss.
  Before drying, disinfection can be carried out, and no impurities are mixed in the drying process, which meets the requirements of GMP.
  _belongs to static vacuum dryer, so the shape of drying materials will not be damaged.
  Note: If the condenser is used, the solvents in the material can be recovered through the condenser. If the solvent is water, the condenser is not needed to save energy investment.
  Optional configuration
  Ultra-Low Vacuum System Flat Plate Dryer Solvent Recovery Tank High Temperature System Online Cleaning Sterilization Oil Barrel Vacuum (Patent) One Room Two Temperature (Patent)

  Matching equipment
  Vacuum Pump Circulating Heating Water Tank Dryer External Vehicle Mixer

Name Model	In-box dimension wide X deep X high (mm)	External dimension wide X deep X high (mm)	Heat transfer layer	Interlayer distance (mm)	Number of drying plates (only)	Evaporation area (m3)	Vacuum (MPa)	Maximum temperature	Steam pressure (Mpa)
ZDF-5	940x1000x1200	1240x1350x1680	8	120	16	5	-0.096	100	0.2-0.6
ZDF-10	950x1450x1200	1250x1730x1680	8	120	24	7	-0.096	100	0.2-0.6
ZDF-15	1160x1360x1200	1500x1700x1700	8	120	32	9	-0.096	100	0.2-0.6
ZDF-20	1160x2000x1200	1500x2300x1770	8	120	48	14	-0.096	100	0.2-0.6
ZDF-30	1160x2000x1400	1500x2300x1900	10	120	60	17	-0.096	100	0.2-0.6
ZDF-35	1480x1450x1600	1740x1760x2100	12	120	72	20	-0.096	100	0.2-0.6
ZDF-40	1480x1950x1460	1740x2600x1970	11	120	88	24	-0.096	100	0.2-0.6
ZDF-45	1480x1950x1600	1740x2260x2100	12	120	96	27	-0.096	100	0.2-0.6
ZDF-50	1600x1950x1600	1920x2330x2100	12	120	108	29	-0.096	100	0.2-0.6
ZDF-55	1600x2600x1600	1920x2950x2100	12	120	144	34	-0.096	100	0.2-0.6
The above data are designed for our company and can be produced according to customer's requirements. Please contact us at 025-85718786/025-85769880.
